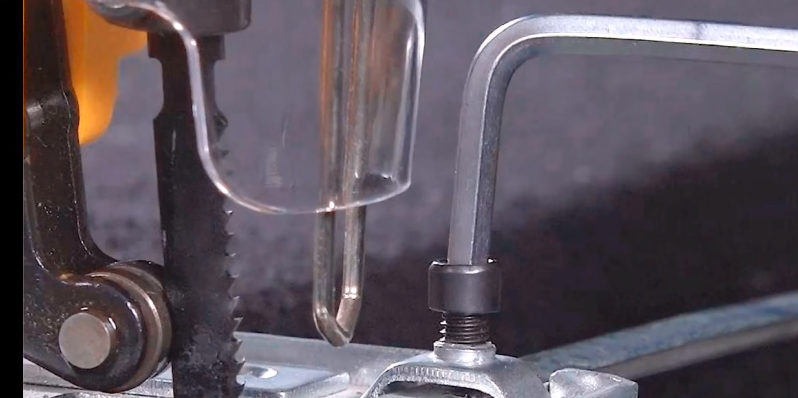

How to Remove Stripped Allen Head Screw: Expert Techniques and Tips

Stripped allen head screws can be a frustrating obstacle for anyone attempting to repair or disassemble a piece of equipment. The difficulty in removing such screws often leads to wasted time and, in some cases, damage to the material surrounding the screw. This article aims to provide practical solutions for successfully removing stripped allen head screws, while minimizing potential damage to the workpiece.

Several methods can be employed to remove these problematic screws, taking into consideration the specific situation and available tools. By understanding the various techniques and determining the most suitable approach, users can efficiently overcome the challenge of dealing with stripped allen head screws and proceed with their project or repair work.

Tools and Materials

Selecting the Appropriate Tools

When removing a stripped Allen head screw, it is essential to choose the right tools for the task. Here are some tools you may need:

• Screw extractors: These are specifically designed for removing stripped screws. Choose the appropriate size for the screw you are working with.
• Left-handed drill bits: These drill bits can help you create a hole in the screw’s center to insert the screw extractor.
• Allen wrenches: Ensure you have a high-quality set of Allen wrenches in various sizes to find the one that fits the screw you need to remove.

Gathering Necessary Materials

In addition to the tools mentioned above, you will also need some materials to help you remove the stripped Allen head screw:

• Penetrating oil: Apply this to help lubricate and loosen the screw, making it easier to remove.
• A hammer and a center punch: Use these to create a starting point for your drill bit or screw extractor.
• Safety equipment: Always make sure to wear safety goggles and gloves when working with power tools.

By having the right tools and materials at hand, you will increase your chances of successfully removing the stripped Allen head screw. Remember to work slowly and patiently to prevent further damage to the screw or surrounding materials.

Techniques to Remove Stripped Allen Head Screws

Stripped Allen head screws can be a challenge to remove, but there are several techniques that can help you extract them effectively without causing further damage.

Using Left-Hand Drill Bits

One method to remove stripped screws is by using left-hand drill bits. These drill bits are designed to turn counterclockwise, which helps in loosening the screw as it drills into the stripped head. Take the following steps:

1. Choose a left-hand drill bit slightly smaller than the screw head.
2. Place the drill bit in the chuck of your drill, ensuring it’s secured tightly.
3. Position the bit over the stripped screw head, keeping it centered and steady.
4. Run the drill in reverse at a low speed, applying moderate pressure as it drills into the screw head.
5. Once the bit has penetrated the screw, continue drilling, and the screw should start to back out.

Applying Screw Extractors

Screw extractors are specially designed tools for removing stripped screws. Here’s how to use them:

1. Select an extractor that matches the size of the screw.
2. Drill a small hole in the center of the stripped screw head using a left-hand drill bit.
3. Insert the screw extractor into the hole, ensuring it’s tightly seated.
4. Turn the extractor counterclockwise with a wrench or pliers until it grips the screw.
5. Continue turning the extractor to back out the screw.

Using Pliers and Flathead Screwdrivers

In some cases, pliers and flathead screwdrivers can help you remove a stripped screw:

1. Open the pliers wide enough to grip the outer edges of the screw head.
2. Turn the screw counterclockwise using the pliers to loosen and remove it.
3. If the screw is partially raised, use a flathead screwdriver to wedge it under the screw head.
4. Apply steady upward pressure while turning the screw counterclockwise, helping to extract it.

Applying Hammer and Chisel Method

If other methods fail, resort to the hammer and chisel method:

1. Position a chisel or flathead screwdriver on the outer edge of the screw head.
2. Gently tap the chisel or screwdriver with a hammer, creating a small notch.
3. Angle the chisel or screwdriver to grip the notch, then carefully apply force to turn the screw counterclockwise.
4. Repeat these steps to gradually loosen and remove the screw.

Preventive Measures

Proper Allen Wrench Usage

Using the correct size of Allen wrench for the screw is essential to prevent stripping of the head. Make sure the wrench fits snugly in the socket of the screw before applying force. To aid in achieving the proper fit, it is recommended to use a metric Allen wrench set for metric screws and an SAE set for imperial screws. Additionally, always apply force in a straight, perpendicular direction to ensure even pressure distribution and prevent slippage.

Lubrication and Maintenance

Regular lubrication and maintenance can extend the life of Allen head screws and help prevent stripping. Applying a quality lubricant to the threads can minimize friction and reduce the chance of corrosion, which may cause the screw to stick or bind. Additionally, frequently inspecting and cleaning screws and their contact surfaces can remove debris and corrosion, ensuring a proper fit and reducing the likelihood of stripping the head. Some important points to keep in mind during maintenance include:

• Choose an appropriate lubricant for the specific material and application
• Apply lubricant to threads sparingly, avoiding excess
• Periodically inspect screws for signs of wear and corrosion
• Clean contact surfaces of debris and corrosion as needed

Conclusion

In summary, removing a stripped Allen head screw can be achieved by following a few simple steps. First, it is essential to choose the right tool for the job, such as a flathead screwdriver, pliers, or a screw extractor. Carefully align the tool with the stripped screw head to ensure a secure grip and apply steady pressure while turning the tool in a counterclockwise direction. If necessary, it may be beneficial to apply heat or a penetrating lubricant to loosen the screw further.

Remember that safety should always be a priority when working with tools and hardware. Wearing protective gear, such as gloves and safety glasses, can help prevent injury during the process. Additionally, it’s crucial to work in a well-lit and stable environment to avoid any accidents.

By following these guidelines and employing patience, one can successfully remove a stripped Allen head screw without causing further damage to the surrounding materials. It’s important to learn from this experience and invest in high-quality tools and screws to prevent similar issues in the future.
