Allen head bolts are a common fastening method used across various industries, including automotive, construction, and DIY projects. However, sometimes these bolts can become stripped, making them challenging to remove. In this article, we will explore the causes of stripped Allen bolts, identification, and the best methods to remove them. We’ll also discuss preventive measures and when to seek professional help.
Understanding Stripped Allen Head Bolts

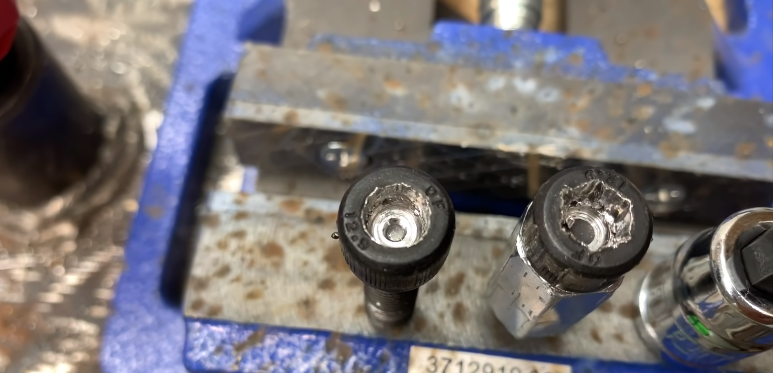

When a hex socket bolt becomes stripped, it means that the internal six-sided socket has been damaged and that the Allen wrench can no longer get a grip on the bolt head. Common causes of stripped Allen bolts include over-tightening, cross-threading, and wear and tear. Although this is a common problem, it can be frustrating and time-consuming, especially if the bolt is in a complicated location.
Causes of Stripped Allen Head Bolts
Over-tightening is a prevalent cause of stripped Allen bolts. When you apply too much force on the bolt, the thread can become damaged, resulting in a stripped bolt. It is essential to use the correct torque specifications when tightening bolts to avoid over-tightening. Cross-threading is another common cause of stripped Allen bolts. This occurs when the threads from the bolt and nut do not align correctly. When this happens, the bolt’s threads can become damaged, leading to a stripped bolt. Finally, wear and tear can happen from frequent use of the bolt. Over time, the threads can become worn down, making it difficult to remove the bolt.
Identifying a Stripped Allen Head Bolt
Identifying a stripped Allen bolt is relatively easy. If the Allen wrench’s hexagon socket cannot grip onto the bolt head, it is likely stripped. Another way to identify a stripped bolt is if you can turn the bolt head but still cannot extract it. This may indicate that the bolt is seized, but it is a different problem altogether. To avoid stripping bolts, it is essential to use the correct tools and techniques when tightening and loosening them.
It is also crucial to inspect bolts regularly for signs of wear and tear. If you notice any damage or wear, it is best to replace the bolt to prevent it from becoming stripped. Additionally, using anti-seize lubricant on bolts can help prevent them from seizing and becoming difficult to remove.
When dealing with stripped Allen bolts, it is essential to take your time and avoid using excessive force. Trying to force a stripped bolt can cause further damage to the threads, making it even more challenging to remove. Instead, try using a bolt extractor tool or seek the help of a professional mechanic.
Finally, prevention is key when it comes to stripped Allen bolts. By using the correct torque specifications, inspecting bolts regularly, and using anti-seize lubricant, you can prevent bolts from becoming stripped in the first place.
Tools and Materials Needed
Before attempting to remove a stripped Allen bolt, you need to have the right tools and materials on hand. This includes essential tools for bolt removal, additional helpful tools, and safety equipment. However, it’s important to note that removing a stripped bolt can be a challenging task, so make sure you have enough time and patience to complete the job.
Essential Tools for Bolt Removal
The essential tools for bolt removal include Allen wrenches, pliers, heat gun, and penetrating oil. Allen wrenches come in various sizes and are essential for removing stripped Allen bolts. It’s important to choose the right size of Allen wrench that fits snugly into the bolt head to avoid further damage. Pliers are optional and can help grip onto the bolt head for extra torque. A heat gun can release the seized bolt by expanding the metal around it. Penetrating oil can assist in loosening rusty bolts by breaking down the rust and corrosion.
When working with a heat gun, it’s important to use it in a well-ventilated area and avoid pointing it at flammable materials. It’s also important to wear heat-resistant gloves to protect your hands from burns.
Additional Helpful Tools
Additional helpful tools include drill bits, screw extractors, hammer and chisel, and vice-grip pliers. These tools are useful when all other options fail and the bolt is still stuck. However, they can also cause further damage to the bolt or surrounding components, so use them with caution.
When using a drill bit, make sure to choose the right size that matches the bolt diameter. Use a slow and steady speed to avoid damaging the surrounding components. Screw extractors can be used to remove bolts that are completely stripped or have broken off. Hammer and chisel can be used to create a new groove on the bolt head for better grip. Vice-grip pliers can be used to lock onto the bolt head and provide extra torque.
Safety Equipment
Safety equipment includes safety glasses, gloves, and ear protection. Safety glasses will protect your eyes from metal debris that can fly off during the bolt removal process. Gloves will protect your hands from cuts and burns, especially when working with a heat gun or sharp tools. Ear protection is vital when using power tools to remove bolts, as they can produce a loud and continuous noise that can damage your hearing.
Remember to always prioritize safety when removing a stripped bolt. Take your time, use the right tools, and protect yourself from potential hazards.
Methods for Removing Stripped Allen Head Bolts
Stripped Allen head bolts can be a frustrating and time-consuming problem to deal with. These bolts are commonly used in machinery, automobiles, and various other applications. They are often used in areas that are hard to access, making them even more challenging to remove when they become stripped. Fortunately, several methods can be used to remove these bolts, each with its advantages and disadvantages. In this article, we will discuss some of the most effective methods for removing stripped Allen head bolts.
Using Left-Handed Drill Bits
The first method is to use left-handed drill bits. This method involves using a reversible drill and a left-handed drill bit. When the drill bit rotates in the opposite direction of the bolt’s original thread, it can release the bolt. The advantage of this method is that it can release the bolt without damaging the surrounding components. However, if the bolt is seized, this method may not be effective, and the bolt may need to be drilled out.
It is essential to use the correct drill bit size when using left-handed drill bits. Using the wrong size can cause the drill bit to slip, which can damage the surrounding components.
Utilizing Screw Extractors
The second method is using screw extractors. This method involves drilling a pilot hole into the center of the bolt and then screwing the extractor counter-clockwise into the pilot hole. The screw extractor applies a reverse torque force to the bolt, helping release it. The advantage of this method is that it is a relatively easy and cost-effective method. However, if the extractor breaks off inside the bolt, it can cause further damage, and the bolt may need to be drilled out.
It is essential to use the correct size screw extractor when using this method. Using the wrong size can cause the extractor to break, which can make the problem worse.
Hammer and Chisel Technique
The hammer and chisel technique involves using a hammer and chisel to create an undercut groove around the bolt head. This groove is where the Allen wrench will grip onto. The advantage of this method is that it is a cost-effective method. However, it can be challenging to create the groove without damaging the surrounding components. You also risk damaging the thread’s integrity, making it harder to repair the bolt later.
It is important to use the correct size chisel when using this method. Using the wrong size can cause the chisel to slip, which can damage the surrounding components.
Pliers and Vice Grips Method
The pliers and vice grips method is where the pliers grip onto the bolt head while applying extra torque. This method works best for bolts that are in easy-to-access locations. The advantage of this method is that it is a quick and straightforward method. However, pliers and vice grips can cause damage to the bolt head, making it harder to remove the next time around.
It is essential to use the correct size pliers or vice grips when using this method. Using the wrong size can cause the pliers or vice grips to slip, which can damage the surrounding components.
Cutting a New Groove
Cutting a new groove is another option. This procedure involves using a rotary tool or an angle grinder to create a new hexagonal indentation on the bolt head. The advantage of this method is that it works well, and it minimizes damage to the surrounding components. However, it requires additional tools and knowledge.
It is important to use the correct size rotary tool or angle grinder when using this method. Using the wrong size can cause the tool to slip, which can damage the surrounding components.
In conclusion, there are several methods for removing stripped Allen head bolts, each with its advantages and disadvantages. It is essential to use the correct tools and techniques when attempting to remove these bolts to avoid causing further damage to the surrounding components. If you are unsure of how to remove a stripped Allen head bolt, it is best to seek the assistance of a professional mechanic or technician.
Preventing Future Stripped Bolts
The best way to prevent stripped Allen bolts is to correctly size Allen wrenches, apply adequate force, and lubricate threads. When using an Allen wrench, choose one that fits snugly into the socket. Do not use force, let the wrench’s leverage do the work. Finally, lubricate the threads before tightening the bolt.
Properly Sizing Allen Wrenches
Using the right size Allen wrench is vital. Using the wrong size Allen wrench can lead to a stripped bolt. The wrench should fit snugly and not slip inside the bolt socket.
It is important to note that there are different types of Allen wrenches available in the market. Some of them have a ball end, which allows you to insert the wrench at an angle. This feature can be useful in tight spaces, but it also reduces the amount of surface area in contact with the bolt, increasing the risk of stripping. Therefore, it is recommended to use a straight Allen wrench whenever possible.
Applying Adequate Force
When tightening a bolt, apply force gradually. Avoid using long handles and too much force, as this can cause damage to the threads.
It is also important to use the correct technique when tightening a bolt. Make sure the wrench is aligned with the bolt and apply force in a smooth, steady motion. Do not jerk or twist the wrench, as this can cause the bolt to become misaligned and lead to stripping.
Lubricating Threads
Before tightening a bolt, apply an appropriate lubricant to the threads. This will help the threads move smoothly and reduce the risk of binding or corrosion.
When choosing a lubricant, it is important to consider the environment in which the bolt will be used. For example, if the bolt will be exposed to high temperatures, a high-temperature lubricant should be used. Similarly, if the bolt will be exposed to moisture or other corrosive substances, a corrosion-resistant lubricant should be used.
It is also important to apply the lubricant correctly. Apply a small amount of lubricant to the threads and distribute it evenly using a brush or a clean cloth. Do not apply too much lubricant, as this can cause the bolt to become loose over time.
When to Seek Professional Help
If the stripped bolt is in an essential location or if all other methods fail, it’s time to seek professional help. A professional may have access to specialized equipment or tools that can help remove the bolt without further damage to the bolt or surrounding components.
Assessing the Situation
Before attempting to remove the bolt, assess the situation to determine if it is worth trying to remove the bolt yourself. Look at the surrounding components and assess the potential damage that could be caused by attempting to remove the bolt on your own. If you feel unsure or uncomfortable trying to remove the bolt, it is best to call a professional.
It’s important to note that attempting to remove a stripped bolt without the proper tools or knowledge can lead to further damage and potentially costly repairs. In some cases, the cost of a professional may be worth it in the long run.
Finding a Qualified Professional
When looking for a qualified professional, it’s important to do your research. Search for one who specializes in the type of work you need. For example, if the stripped bolt is on a car, you may want to search for a mechanic who specializes in that make and model of car.
You can ask for referrals from friends and family who may have had similar issues, or you can search online for local professionals. Be sure to read reviews and check their credentials before making a decision.
It’s also important to ask about pricing and any guarantees or warranties they may offer. Don’t be afraid to ask questions and get a clear understanding of what the professional will be doing to remove the stripped bolt.
Remember, seeking professional help may be the best option for removing a stripped bolt without causing further damage or complications. Don’t hesitate to call a professional if you feel unsure or uncomfortable attempting to remove the bolt on your own.
Conclusion
Removing a stripped Allen bolt is a frustrating experience, but with the right tools and techniques, it is possible. Remember to be patient, use caution, and follow safety precautions. Prevent future stripped bolts by correctly sizing Allen wrenches, applying adequate force, and lubricating threads. When in doubt, seek professional help.
